Price: ₹71,599.00
(as of Dec 11, 2024 13:43:06 UTC – Details)
From the manufacturer
MSI: For Gamers & Creators
MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

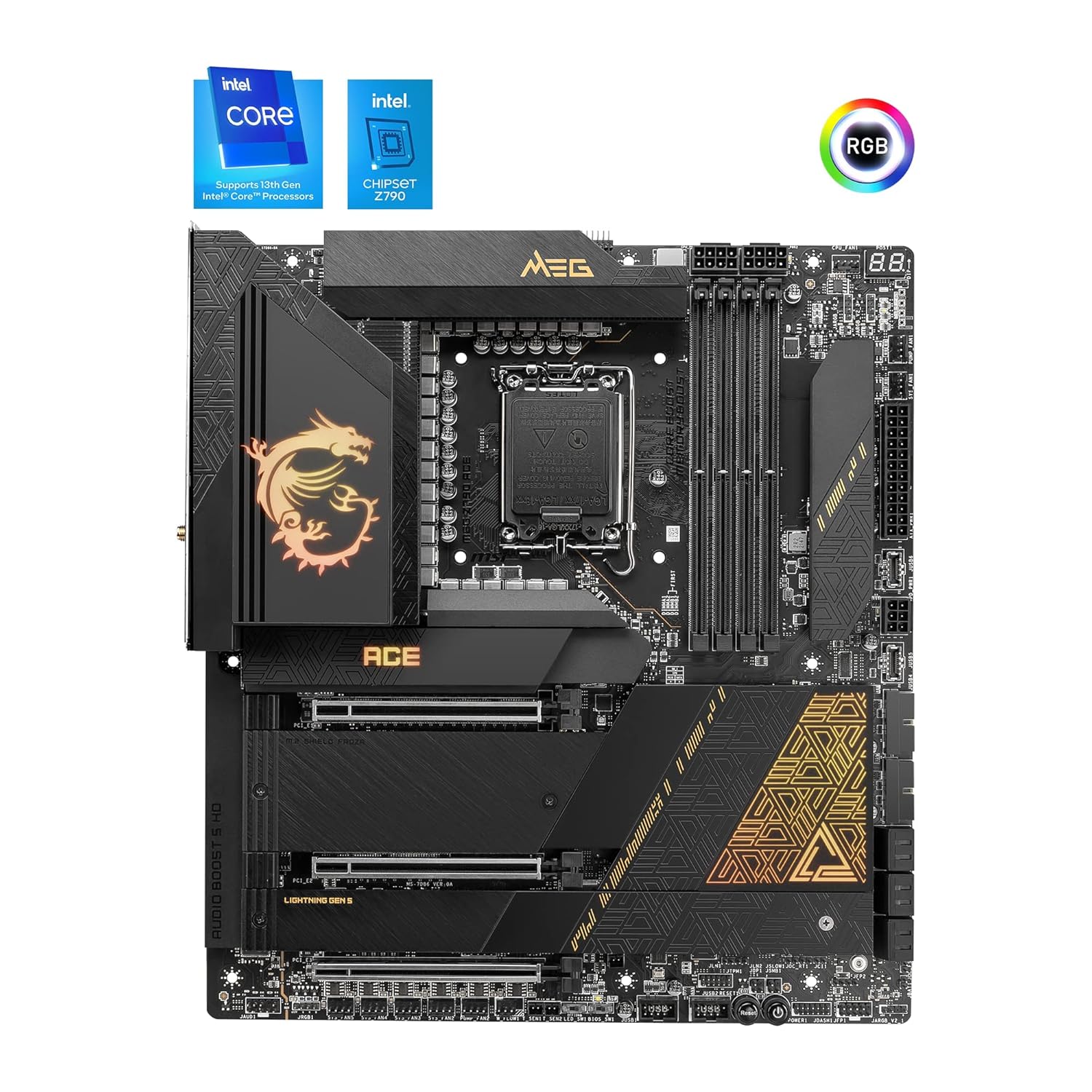

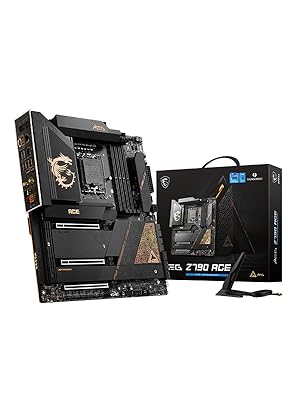

MEG Z790 ACE
Lustrous Aesthetics, Pure Performance
The MEG Z790 ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the Intel Z790 chipset and 13th gen processors by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.
Supports Intel Core 12th & 13th Gen Processors (LGA 1700) 24 Duet Rail Power System with 105A Smart Power Stage 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 7800MHz OC) 2 x PCI-e 5.0 x16, 1 x PCI-e 4.0 x16 slots (AMD Multi-GPU supported) Lightning Gen5 & Gen4 M.2 slots with double-sided M.2 Shield Frozr Dual front USB 3.2 Gen 2×2 Type-C 20Gbps with one 60W PD Dual 2.5G LAN, Wi-Fi 6E & Bluetooth 5.2, Dual Thunderbolt 4 port, Audio Boost 5 HD
Z790 Chipset, 24 Duet Rail Power System, Extreme Cooling, DDR5 Memory Boost
Supports Intel Core 12th & 13th Gen Processors
The MEG Z790 ACE motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: E-ATX
Socket Type: LGA 1700
Chipset: Intel Z790
24+1+2 Duet Rail Power System with 105A SPS
With its dual 8 pin power connectors and exclusive Core Boost technology, the MEG Z790 ACE is able to release maximum CPU power loads to support system-demanding game settings:
1. Digital PWM IC
2. 24-Phase Duet Rail CPU Power (Smart Power Stage / 105A)
3. 1-Phase GT Power
4. 2-Phase AUX Power
Extreme Cooling Features
VRM Cooling: Features Stacked Fin Array, MSI direct-touch Cross heat pipe, 7W/mK MOSFET thermal pads with extra choke thermal pads and Frozr AI software for improved thermal dissipation.

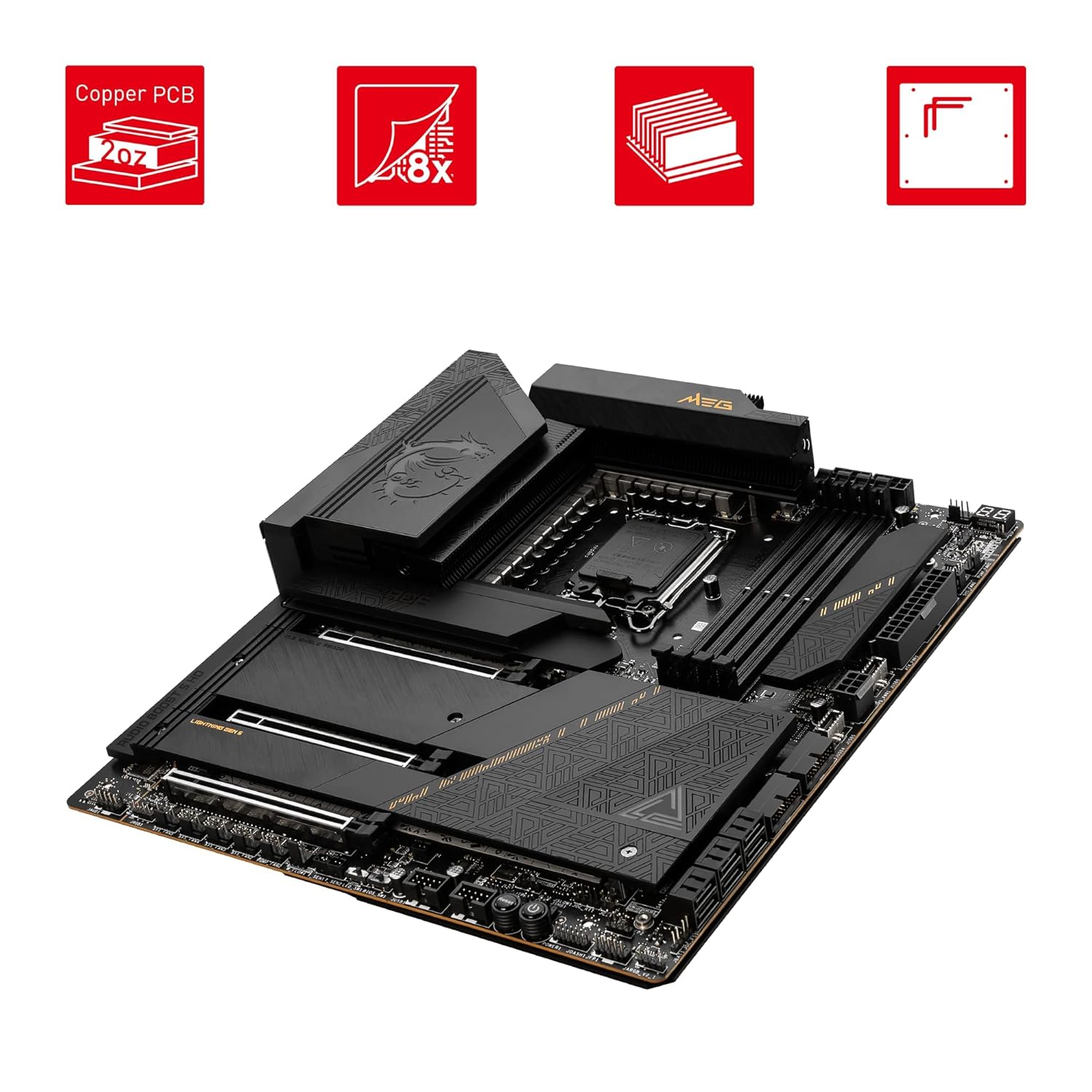

PCB Cooling: Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling and protects SSDs.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including dual pump-fan headers.

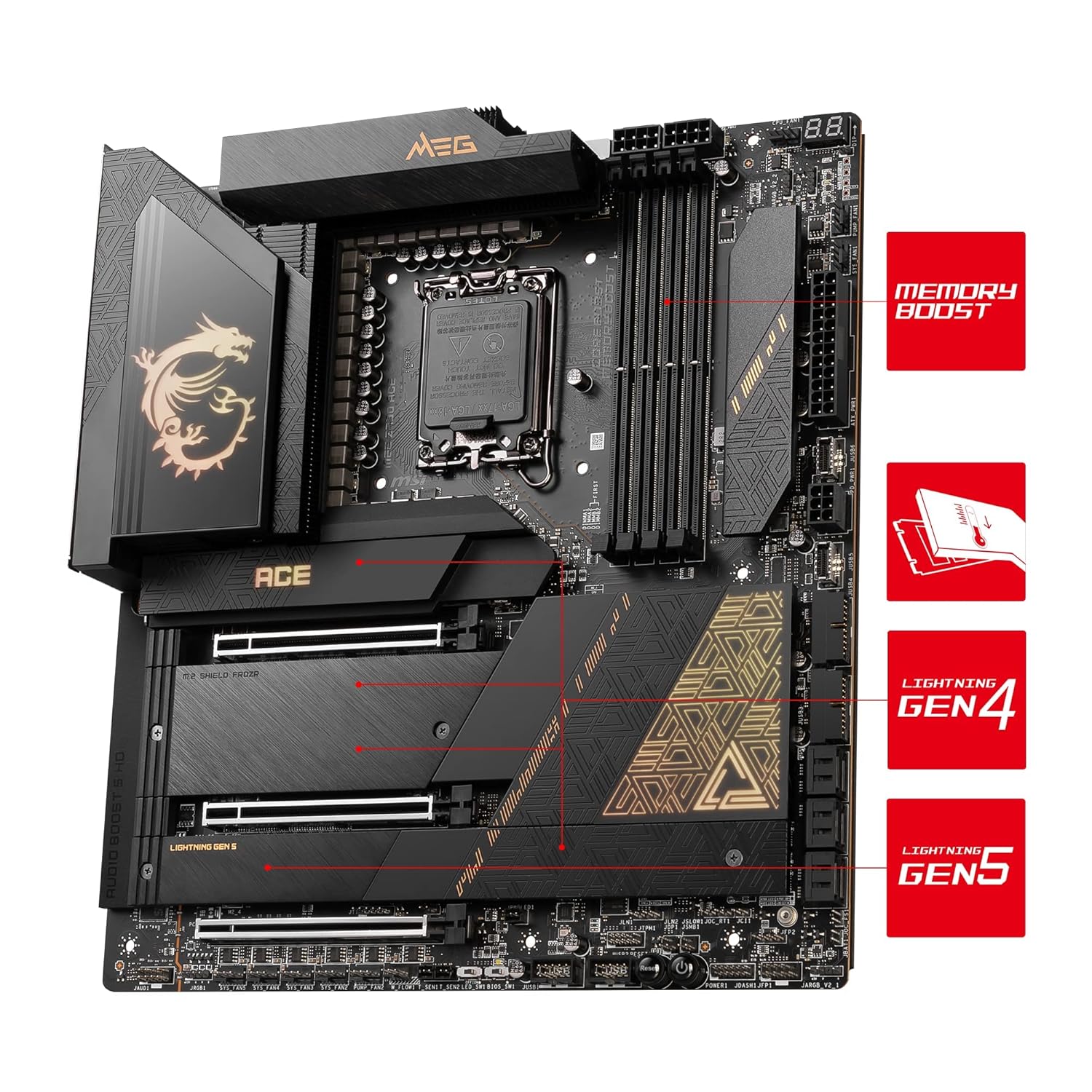

4 x DDR5 Dual Channel (7800 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 7800+ MHz, supports Intel XMP.
2 x PCI-e 5.0 x16 Slots, Premium Storage Performance, DIY Friendly Design, Wi-Fi 6E & Thunderbolt 4 Ports
2 x Fortified PCI-e 5.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCI-e 5.0/4.0/3.0 x16 slots* (with Steel Armor** and AMD Multi-GPU supported)
1 x PCI-e 4.0/3.0 x16 slot
*Supports x16/x0, x8/x8
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

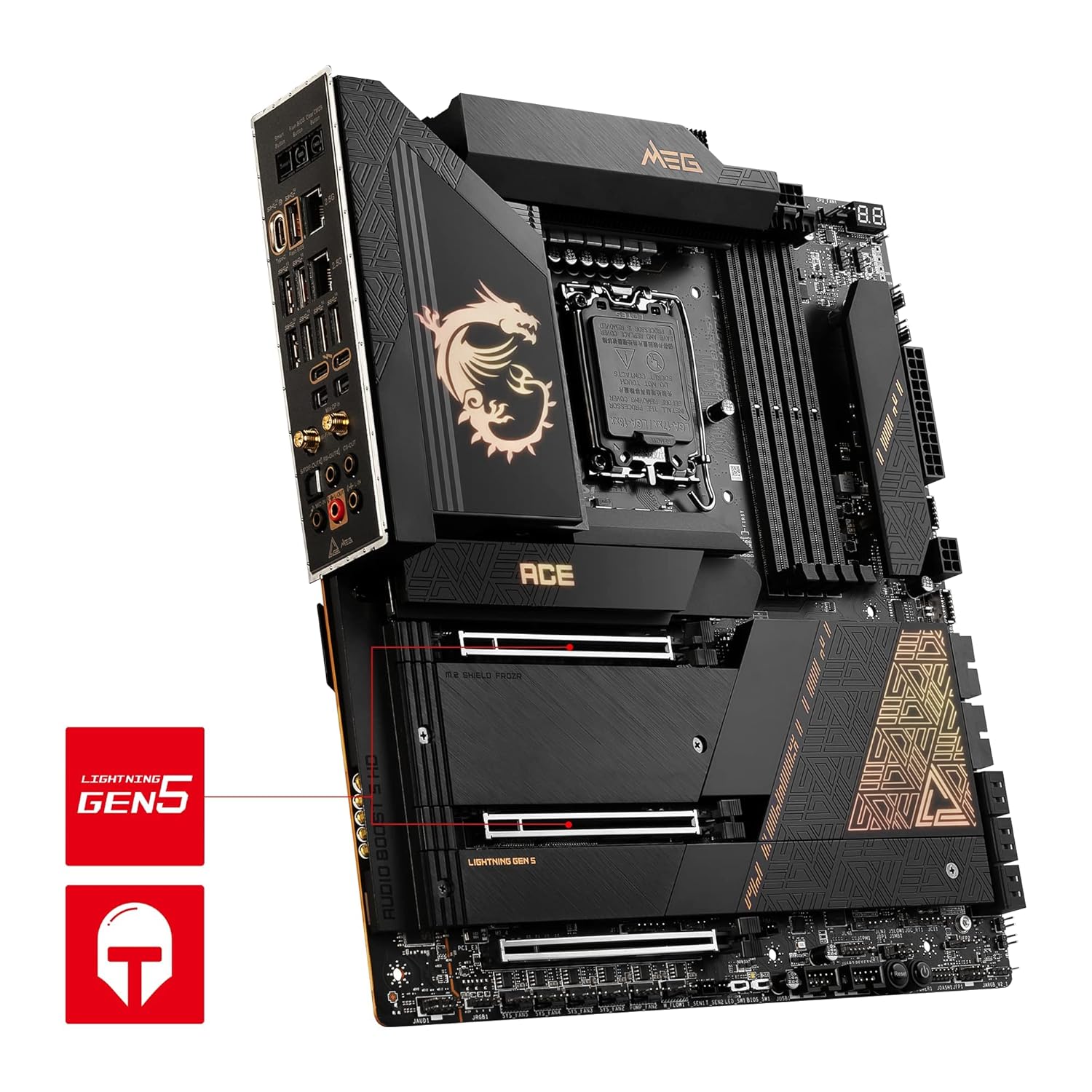

Gen5 & Gen4 M.2 Connectors
The MEG Z790 ACE motherboard features MSI’s M.2 slots:
1 x Gen5 x4 128Gb/s slot
4 x Gen4 x4 64Gb/s slots
DIY Friendly Design
MSI MEG Z790 ACE motherboards feature patented tool-free M.2 Shield Frozr covers as well as EZ M.2 clips for DIY friendly M.2 SSD installation & upgrades. Magnetic Tool-Free M.2 Design: This patented design enables true “wire-less” RGB function, while the screwless design provides the easiest way for M.2 installation. EZ M.2 Clip: Install or replace M.2 SSD quickly and effortlessly without ever having to hunt for a screwdriver.
Wi-Fi 6E & Thunderbolt 4 Ports
Dual 2.5G LAN: Dual Intel 2.5Gbps LAN controllers deliver a premium network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
Thunderbolt 4: Supports true 40Gbps transfer rates and 8K display support.
HD Audio: 7.1-Channel USB High Performance Audio with Audio Boost 5 HD & S/PDIF output.
12TH & 13TH GEN CORE, EXTREME PERFORMANCE – The MEG Z790 ACE employs a 24 DRPS (105A, SPS) VRM system for the Intel Z790 chipset (LGA 1700, 12th & 13th Gen Core); Core Boost architecture unlocks the full potential for multi-core overclocking
DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); 2 x PCIe 5.0 x16 Steel Armor slots supports the primary graphics card (tertiary PCIe 4.0 x16 slot)
QUINTUPLE M.2 CONNECTORS – Premium storage options consist of 1 x M.2 Gen5 x4 128Gbps slots and 4 x M.2 Gen4 x4 64Gbps slots with double-sided Shield Frozr to prevent SSD thermal throttling; Features a tool-free installation system with EZ M.2 Clips

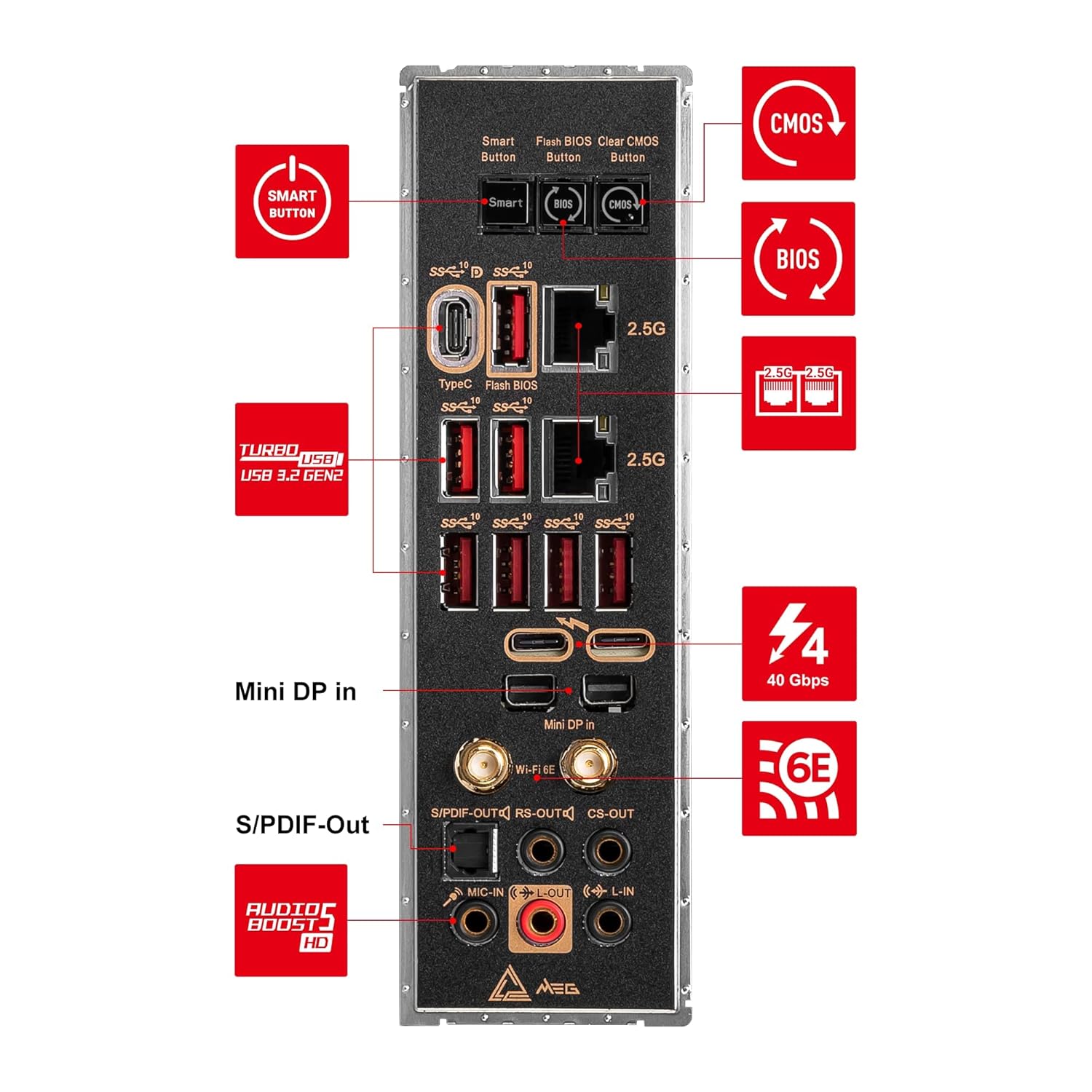

EXCELLENT CONNECTIVITY – Network includes an Intel Wi-Fi 6E module with Bluetooth 5.2 & dual 2.5Gbps LAN; Rear ports include 2 x Thunderbolt 4 (USB Type-C, 40Gbps) & Mini DP input & 7.1 USB High Performance Audio with Audio Boost 5 HD (S/PDIF output)
