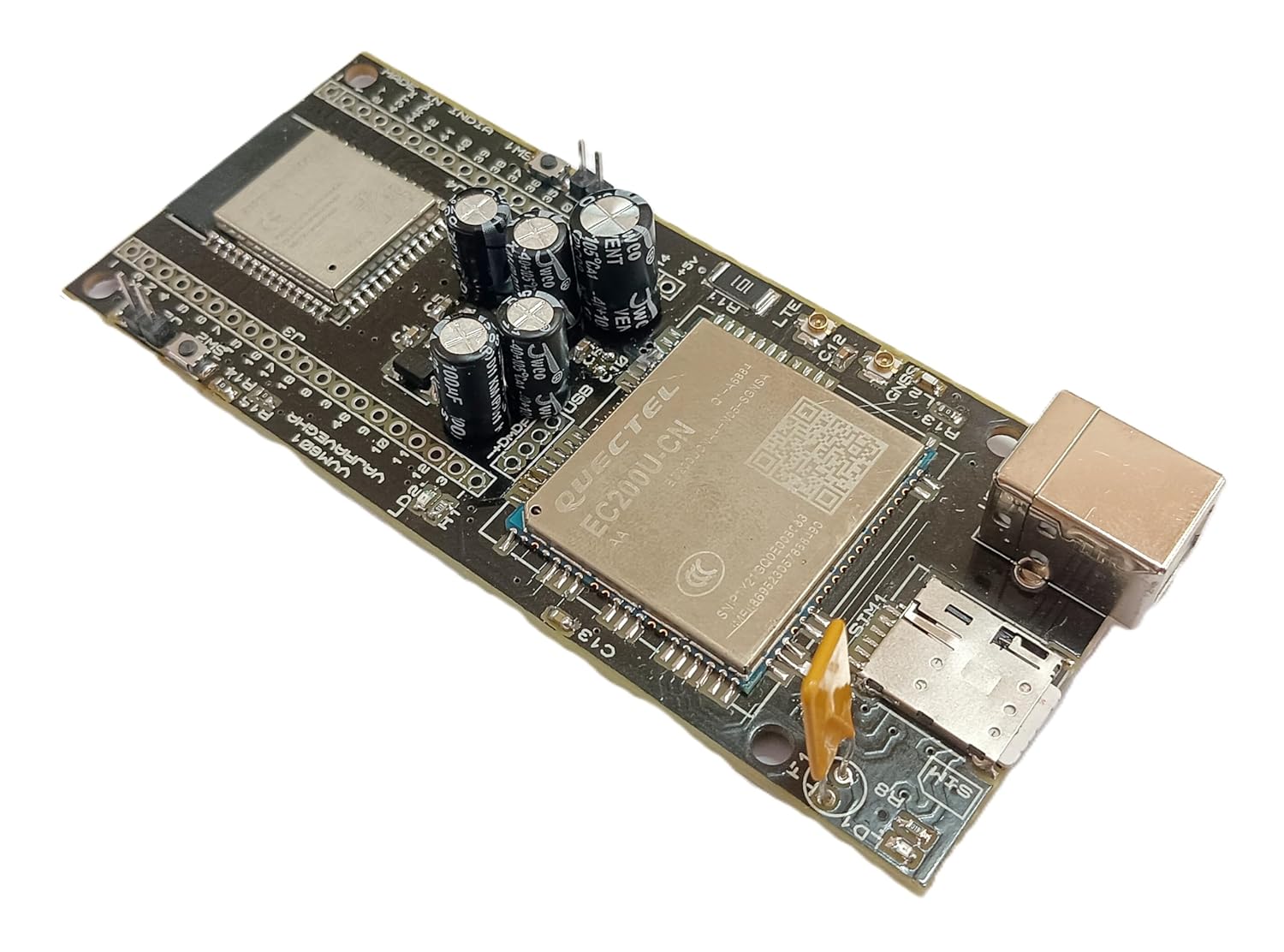

VVM601 ESP32-S3 Quectel EC200U 4G LTE Module is a low power embedded module designed for high-speed wireless communication.
Legacy devices still relying on 2G/3G can be upgraded to 4G networks and made IoT/ Industry 4.0 ready.
ESP32-S3-WROOM-1-N16R8 SoC with Xtensa dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz. 16MB Flash, 8MB PS-RAM, 36 GPIOs. Peripheral support include GPIO, SPI, LCD interface, Camera interface, UART, I2C, I2S, PWM, full speed USB OTG/Serial/JTAG, ADC, timers and watch-dogs.
The module uses one of the popular 4G LTE chipset EC200U by Quectel. It is Multi-Band LTE-TDD/LTE-FDD/HSPA+ and GSM/GPRS/EDGE module solution in an SMT type which supports LTE CAT1 up to 10Mbps for download data transfer
EC200U has built-in GNSS function, so no additional GPS modules are required.
The board supports multiple built-in network protocols like HTTP, HTTPS, FTP, FTPS, MQTT(s), etc. along with SMS and calls.
The board is powered using a USB Type- B female connector and requires a regulated 5V/2A power source. As ESP32-S3 supports USB 2.0, this port can be used for uploading new code and monitoring. The module can also be powered by 5v input pin, if it’s not powered by USB.
On-board fuse protection, transient voltage protection and EMI suppression. Compact PCB size 105x45mm.
ESP32-S3-WROOM-1-N16R8 : 2.4GHz Wi-Fi + Bluetooth 5, 240 MHz with 16MB Flash Memory and 8MB PS-RAM, 36 programmable GPIOs, AI acceleration support for vector instructions, full speed USB 2.0, no USB-TTL required.
Quectel EC200U-CN 4G LTE Cat 1 module with 10Mbps downlink, supports all Indian freqency bands
Built-in GNSS / GPS (GPS Antenna to be purchased separately)
Single USB Type B connector for power, serial monitoring and programming
Applications: Artificial Intelligence of Things (AIoT), smart home, smart appliances, smart control panel, POS, data cards, energy control and monitoring, IoT gateways, etc.
Designed and Made In India
